Your Guide to the Ultimate Racing Drone Frame

Think of a racing drone frame as the skeleton of your FPV quadcopter. But it's so much more than just a place to mount your electronics. This is the high-performance chassis that single-handedly dictates your drone's speed, agility, and, crucially, its ability to survive the high-speed crashes that are an inevitable part of FPV life.

The Blueprint of FPV Performance

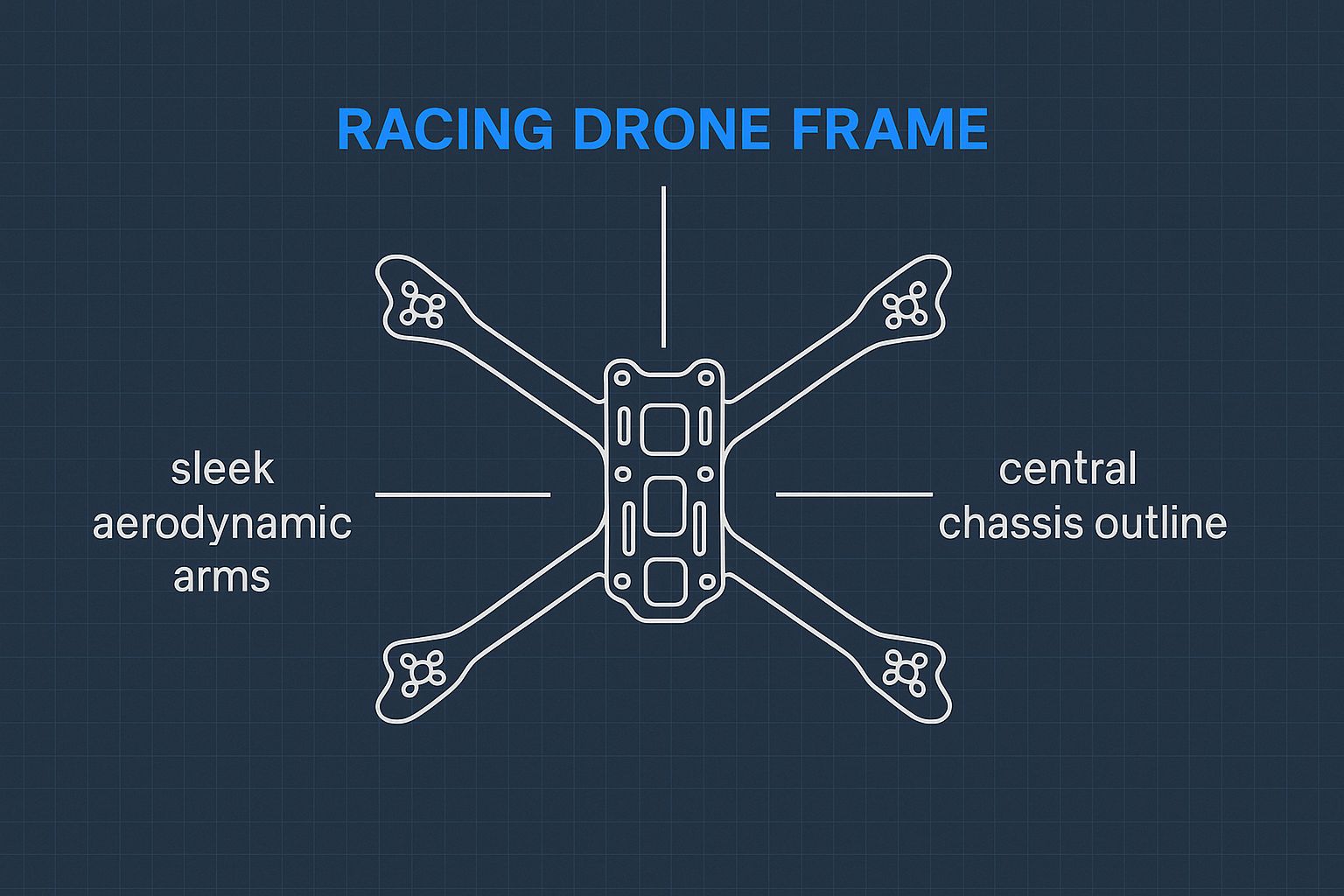

A racing drone frame is to your quad what a chassis is to a Formula 1 car. It’s the most critical piece influencing how your drone flies. The frame's design, material, and geometry all have to work together perfectly to give you that rigid, vibration-free platform needed for crisp, lightning-fast control.

This central structure is doing a few things at once. It has to be incredibly tough to shield your expensive flight controller, camera, and motors when you smack into a gate. At the same time, it needs to be as light as possible. In racing, every single gram is a penalty that slows you down.

Key Takeaway: Choosing a frame is a constant balancing act. You're always trading durability for weight and agility. A heavier, tank-like frame might walk away from more crashes, but a lighter one will always be faster and more nimble on the track.

Why Your Frame Choice Is So Important

The frame's influence goes way beyond just taking a hit. Its shape and layout directly impact how the drone handles and cuts through the air.

For example, a frame with a symmetrical "True X" geometry gives you perfectly balanced, predictable handling that’s fantastic for pulling off sharp rolls and flips. On the other hand, a "Stretched X" design elongates the body, which can improve stability when you're flying flat-out in a straight line.

Getting a handle on these details is your first step toward building a drone that’s genuinely competitive. The frame determines:

• Handling and Agility: How quickly and precisely the drone reacts to your stick movements.

• Durability: Its ability to absorb impacts and keep your electronics safe.

• Weight and Speed: The base weight that everything else adds to, which directly affects your acceleration and top speed.

• Component Layout: The space you have and the mounting options for your camera, video transmitter, and flight stack.

As you dive deeper into the world of FPV, just remember that even with the best motors and electronics, a bad frame will always be an anchor holding you back. And while you're flying these powerful machines, it's smart to stay on top of the local rules and regulations. To get a better grasp of this, you can learn more about drone privacy concerns and how to protect your rights in our detailed guide. This foundational knowledge is what will empower you to pick the perfect racing drone frame for whatever you plan to do.

Understanding Frame Materials and Durability

The material your racing drone frame is made of is the very soul of its performance and resilience. It's what separates a quad that feels sharp and responsive from one that feels flimsy, and it's often the deciding factor between a drone that shrugs off a crash and one that shatters into pieces. Your choice of material directly impacts the frame's strength, weight, and ultimately, how long it will last out on the track.

At the heart of just about every competitive racing drone out there is carbon fiber. It has become the undisputed king of frame materials for one simple reason: its incredible strength-to-weight ratio. This stuff is exceptionally rigid and tough, yet surprisingly light—the holy grail for any high-performance vehicle. It allows manufacturers to design frames that can take a beating without weighing the drone down.

This constant push for lighter, tougher frames is a major force behind the FPV market's explosive growth. As drone racing evolves from a niche hobby into a full-blown competitive sport, the demand for better tech just keeps climbing. The U.S. racing drones market, valued at an estimated $417.6 million in 2025, is on track to hit a staggering $1.35 billion by 2032. This trend is a direct reflection of manufacturers continuously innovating to create frames that deliver more speed and agility. You can explore more market growth projections for racing drones from CoherentMI to get a deeper look at how the industry is shaping up.

Identifying Quality Carbon Fiber

Here’s the thing: not all carbon fiber is the same. The quality can vary wildly, and that has a huge impact on both durability and how the drone feels in the air. When you're sizing up a new frame, there are a few tell-tale signs of high-quality carbon.

First, look for frames made from T700 carbon fiber. This is a premium-grade material known for its superior tensile strength and stiffness compared to cheaper stuff like T300. While not every manufacturer advertises the specific grade, the top-tier brands often make a point of it.

Another dead giveaway of quality is the finish. A high-quality frame will almost always have chamfered edges. This just means the sharp, 90-degree edges of the carbon have been shaved down or rounded off. It might seem like a small cosmetic detail, but it dramatically improves the lifespan of your electronics by preventing those sharp edges from slicing into motor wires or battery leads during a hard crash.

Pro Tip: A quick way to check is to gently run your finger along the edge of a frame's arm. If it feels smooth and slightly rounded, you're looking at a well-finished frame with chamfered edges. A sharp, raw edge is often a sign of a cheaper manufacturing process.

Weave, Thickness, and Hardware

The way the carbon fiber is constructed matters just as much as the material itself. You’ll often hear terms like "twill weave" or "quasi-isotropic layup." A twill weave, for example, is fantastic at providing strength in multiple directions, which is perfect for handling the complex stresses an FPV drone arm goes through.

The thickness of the carbon, especially on the arms, is a direct indicator of its durability.

• Thinner Arms (4mm): These are lighter and create less drag, which can make your drone feel more nimble and potentially fly faster. The downside? They are much more likely to snap in a serious crash.

• Thicker Arms (5-6mm): These give you a major boost in durability and can survive repeated impacts with race gates, trees, or the ground. The trade-off is a bit of extra weight and drag.

If you're just starting out, grabbing a frame with at least 5mm thick arms is a smart move. It will almost certainly save you money and headaches on replacement parts down the line.

Finally, don't forget the hardware. The frame might be carbon fiber, but the screws and standoffs holding it all together are just as critical. Most quality frames use high-strength steel or titanium screws paired with aluminum standoffs. Steel is tough and budget-friendly, while titanium offers similar strength for less weight—a premium feature you’ll see on higher-end frames. This mix of materials is what gives your racing drone the structural integrity it needs to compete.

Racing Drone Frame Material Comparison

Choosing the right material is a balancing act between durability, weight, and cost. This table breaks down the most common materials to help you see how they stack up for different needs.

Material	Key Benefit	Common Use Case	Durability Rating
Carbon Fiber	Excellent strength-to-weight ratio	The standard for nearly all racing and freestyle frames	High
Titanium	Extreme strength and low weight	Premium hardware (screws, bolts) on high-end frames	Very High
Aluminum	Lightweight and rigid	Standoffs, camera mounts, and some hybrid frames	Medium
Steel	High strength and low cost	Standard hardware (screws) on most frames	High

Ultimately, carbon fiber remains the champion for the main structure, but the quality of the supporting hardware is what completes a truly durable and reliable frame.

How Frame Geometry Shapes Your Flight

If you think of your frame's material as its bones, then its geometry is the very DNA of its flight behavior. It dictates everything. Just like a car's wheelbase and track width determine its stability and how it attacks corners, the shape of your drone's frame completely defines how it feels in the air.

Getting a handle on these different designs is the key to matching a drone to your personal flying style. The specific placement of the motors in relation to each other and the central body creates distinct handling characteristics. A tiny change in an arm's angle can be the difference between a quad that feels perfectly locked-in and one that's twitchy and unpredictable.

The Balanced All-Rounder: The True X Frame

For many FPV pilots, especially those who live for freestyle, the True X frame is the gold standard. Its defining feature is perfect symmetry. The distance from one motor to the motor directly in front or behind it is exactly the same as the distance to the motor beside it. It forms a perfect square.

This layout gives you incredibly neutral and predictable handling. A roll feels identical to a flip. Because of this symmetry, the flight controller has a much easier job managing the motors, which translates to a smooth, connected feel for the pilot. If you want crisp, identical responses on both your pitch and roll axes, the True X is hard to beat.

Gaining an Edge: Stretched and Wide X Frames

While the True X is the master of balance, some racing situations call for a more specialized tool. This is where you see variations like the Stretched X and Wide X frames enter the picture.

A Stretched X frame, as the name implies, elongates the body. This pushes the front and rear motors further apart while keeping the side-to-side motor distance the same.

• Benefit: The big advantage here is greater stability on the pitch axis. During high-speed forward flight, the drone feels more "locked-in" and is less prone to wobbling, making it a favorite for drag-race-style tracks.

On the flip side, a Wide X frame (sometimes called a "Squashed X") does the exact opposite. It pushes the side motors further out, which increases stability on the roll axis.

• Benefit: This is a huge help on tracks with lots of tight, rolling corners. That added roll stability makes the quad feel more planted as you execute sharp, banked turns, though it can sometimes make yaw maneuvers feel a little different.

Analogy: Think of it like a figure skater. When they pull their arms in tight (like a True X), they can spin incredibly fast and symmetrically. But when they extend their arms out to the sides (like a Wide X), they become far more stable and can control their rotation with more authority.

Other Geometries: The H Frame and Vertical Arms

Beyond the X-style family, a couple of other designs pop up for specific reasons. The H Frame was very popular back in the day, with two parallel arms connected by a central body, looking just like the letter 'H'. Its main draw was the huge, open space in the middle that made it easy to mount all your electronics. However, the design is heavier and less stiff than modern X frames, so it has mostly fallen out of favor for pure racing.

A much more radical and modern approach is the Vertical Arm frame. Here, the carbon fiber arms are oriented vertically instead of lying flat. This dramatically slashes the frame's frontal profile, minimizing air resistance (drag) to achieve maximum straight-line speed. This is a highly specialized racing drone frame built for one thing: winning races where top speed is everything. The trade-off is that they can sometimes be less durable in certain types of crashes.

For pilots pushing the absolute limits of speed and signal, you might also want to check out our guide on mastering drone FPV range and signal strength.

When it comes to competitive FPV racing, two things matter more than almost anything else: size and weight. It's a lot like motorsports, where engineers obsess over every single ounce to shave milliseconds off lap times. The performance of your racing drone is directly tied to how big it is and how much it weighs. Every gram counts, impacting your acceleration, agility, and even how long you can stay in the air.

This relentless push for lighter, stronger, and quicker designs is what drives the entire drone frame market. It’s a serious business, valued at around USD 2.6 billion in 2023 and expected to jump to roughly USD 4.21 billion by 2031. This isn't just a niche hobby; the growth comes from serious demand in places like North America and Europe for specialized frames used in racing, surveillance, and even delivery. If you're curious, you can explore more about the global drone frame market trends to see how different parts of the world are pushing development forward.

Decoding Frame Sizes

So, what do we mean by "frame size"? It's a diagonal measurement in millimeters from the center of one motor to the center of the motor diagonally opposite it. This number gives you a pretty good idea of the largest propeller the frame can handle without the tips hitting each other. While you can find frames in all sorts of sizes, a few key classes have really taken over the FPV world.

• 5-Inch Frames (Approx. 210-250mm): This is the undisputed king of the hill for both racing and freestyle flying. The 5-inch class just hits that perfect sweet spot, giving you an awesome balance of power, agility, and a massive ecosystem of compatible parts like motors and props. If you're getting serious about racing, you'll be spending most of your time here.

• 3-Inch Frames (Approx. 120-160mm): Think of these as the nimble little sports cars of the drone world. They're often used for "toothpick" builds—ultralight quads that are ridiculously agile and perfect for zipping around smaller parks or even your backyard. They don't pack the raw power of a 5-inch, but they are a blast to fly and surprisingly fast.

• 7-Inch Frames (Approx. 280-320mm): On the other end of the spectrum, you have the long-range cruisers. These frames are built for cinematic flying and exploring far-off places. Their larger size lets them swing bigger, more efficient props, which translates to longer flight times and smoother, more stable flight. The trade-off? They lack the aggressive, snappy feel you need for a tight race course.

For anyone looking to build a competitive racing drone, the 5-inch category is the place to be. Its overwhelming popularity means you'll always have access to the latest innovations and the best selection of components.

The Obsession with All-Up Weight

Dive into any FPV forum or pilot chat, and you'll hear one term over and over: All-Up Weight (AUW). This is exactly what it sounds like—the total weight of your drone when it's fully assembled and ready for takeoff. We're talking frame, electronics, motors, props, and, of course, the battery. For every pilot, the goal is always to get that AUW as low as humanly possible.

Why AUW is Critical: A lower AUW means your motors have less mass to fight against when you want to change direction. The result? You get snappier throttle response, much sharper cornering, and faster acceleration out of the turns. On a racetrack, those are the advantages that win races.

Your quest for a low AUW begins with the frame. When you're shopping around, pay close attention to the base weight listed by the manufacturer. A frame that weighs 110 grams is going to feel noticeably more responsive than one that comes in at 140 grams, even if they have the exact same shape. That 30-gram difference might not sound like much, but it gets magnified once you add all the other components.

The trick is to find a racing drone frame that's as light as possible without being so flimsy that it shatters on the first hard crash. It’s a balancing act, but one that’s essential to master for race day success.

Key Features and Essential Maintenance

When you're looking at a new racing drone frame, it's easy to get lost in the big specs like geometry and materials. But honestly, it's the small details that can make or break your experience—how easy it is to build, how quickly you can fix it after a crash, and how it feels in the air. These thoughtful features are often what you're paying for in a premium frame, and knowing what to look for can save you a ton of headaches down the line.

Just as important is keeping up with maintenance. A racing drone gets slammed around. It deals with insane forces and, let's be real, frequent, high-speed impacts. If you skip routine checks, you're just asking for a catastrophic failure, probably right in the middle of a race. Think of it like a pilot's pre-flight check; you have to inspect your frame to make sure it's ready for another round of abuse.

Unibody vs. Replaceable Arms

One of the first big design choices you'll run into is how the arms are attached to the frame. This single feature dramatically changes the frame's rigidity and, more importantly, how you'll deal with repairs.

• Unibody Frames: These frames are built around a single, solid bottom plate cut from one piece of carbon fiber, with all four arms integrated. The big advantage here is stiffness. With no joints or extra hardware, you get maximum rigidity, which usually gives you a super responsive and "locked-in" feel. The huge drawback? If you snap an arm, you're replacing the entire main plate—the most expensive part of the frame.

• Replaceable Arm Frames: Here, each arm is a separate piece of carbon fiber that bolts onto the main body. This is a lifesaver for field repairs. You snap an arm, you just unscrew the broken one and swap in a spare. The whole process takes minutes and might set you back $10-15 for a new arm instead of $40+ for a whole new plate. The trade-off is a tiny bit less rigidity and a little more weight from the extra screws and hardware.

For anyone just starting out, a frame with replaceable arms is almost always the smarter move. It’s way more forgiving and cheaper in the long run while you're getting the hang of things.

Essential Maintenance Checklist

For any serious FPV pilot, preventative care isn't optional—it's mandatory. A tiny crack or a loose screw that seems like no big deal on your workbench can turn into a full-blown disaster mid-flight. A well-maintained frame is a reliable frame.

A rigorous pre-flight inspection is the single best way to prevent unexpected failures. Catching a problem before you take off can save you from losing a race or, worse, losing your entire drone.

Your post-crash and pre-flight routine should always cover these points:

1. Check for Delamination: After a hard hit, run your fingers along the edges of the carbon fiber arms and plates. You're looking for any signs of the layers splitting or peeling apart, which is called delamination. A delaminated arm has lost its strength and needs to be replaced immediately. No exceptions.

2. Tighten All Screws: The constant vibration from the motors will work screws loose over time. Give every screw a quick check, but pay special attention to the motor mounts and the bolts holding the arms to the body. A loose motor will cause horrible oscillations and could even rip itself off the arm.

3. Inspect Standoffs and Top Plate: Make sure all the standoffs (the metal posts separating the plates) are straight and that the top plate isn't bent or cracked. These parts form the protective cage for your electronics, so if they're compromised, your flight controller is next.

4. Examine 3D Printed Parts: Your camera and antenna mounts are just as critical as the carbon. Check them for cracks and make sure they're still holding everything tightly. A wobbly FPV camera makes it almost impossible to fly.

Making this a habit is absolutely crucial for safety and performance. For a more in-depth guide, our [comprehensive drone preflight checklist](https://www.jabdrone.com/post/drone-preflight-checklist-safe-flight-prep) walks you through everything step-by-step. This simple routine will not only make your drone last longer but also give you the confidence to really push it to its limits.

How to Choose Your Perfect Racing Drone Frame

Now that you have a solid grasp of the materials, geometries, and weight considerations, it's time to pick the perfect skeleton for your FPV machine. Let’s be clear: choosing a racing drone frame isn't about finding a single "best" one. It's about finding the one that perfectly matches your flying style, your budget, and what you want to achieve. Think of it as a personal checklist, connecting your goals to the right features.

The very first question you need to ask yourself is: What is my primary flying style? The answer to this will point you directly to your ideal frame geometry.

• Beginner Focused on Durability: Look for a frame with thick, replaceable arms—at least 5mm thick. Crashing is a non-negotiable part of learning, and being able to make quick, affordable repairs will keep you in the air instead of on the workbench.

• Acrobatic Freestyle Pilot: You'll probably feel right at home with a ‘True X’ frame. Its symmetrical, perfectly balanced handling gives you that neutral and predictable response you need for crisp, clean rolls and flips.

• Competitive Racer: To get an edge on the track, a specialized geometry like a ‘Stretched X’ is the way to go. That extra stability on the pitch axis helps you stay locked in and confident on fast, straight sections of a race course.

Creating Your Selection Checklist

Once you've zeroed in on your flying style, it's time to dig into the details. Your final decision should be guided by a few key factors that paint a complete picture of your needs.

This thoughtful approach is more important than ever as the drone racing scene continues to explode. The global market, valued at around USD 1.1 billion in 2024, is expected to climb to a staggering USD 5.43 billion by 2032. This incredible growth just goes to show the rising demand for specialized, high-performance parts like the frame itself. You can read the full research on the racing drone market growth to see the trends pushing all this innovation.

Here’s a simple checklist to walk you through it:

1. Define Your Budget: Good frames can range anywhere from $40 to over $90. Be realistic about what you can spend, but keep in mind that investing a little more in a frame with better carbon and a smarter design can save you a ton of money on repairs down the road.

2. Choose Your Repair Strategy: Do you want the absolute rigidity of a unibody frame, or do you prefer the easy, cheap field repairs you get with replaceable arms? For most pilots, especially if you're just starting out, replaceable arms are the far more practical choice.

3. Confirm Electronics Compatibility: Always check the mounting patterns. Are you planning to use a standard 30x30mm stack or a lighter 20x20mm micro stack? Make sure the frame you pick has the right mounting holes to fit your flight controller and ESC without any headaches.

By systematically working through these questions, you create a direct line between your personal ambitions and the technical specs of a frame. This ensures you end up with a racing drone frame that doesn't just work, but actively helps you fly better and enjoy the sport more.

For a deeper dive into putting all the pieces together, check out our complete guide on building a racing drone from scratch.

Common Questions About Racing Drone Frames

Getting into FPV can feel like learning a new language, and your drone's frame is the bedrock of your entire build. It’s no surprise that a ton of questions pop up. Let's tackle some of the most common ones pilots have when picking out a frame.

What’s the Most Durable Type of Racing Drone Frame?

If you’re looking for a tank, you want a frame milled from high-quality T700 carbon fiber. A unibody design, where the main plate is one solid piece, is incredibly rigid. Pair that with thick arms, usually in the 5mm to 6mm range, and you’ve got a chassis that can take a beating.

But there's another side to durability: easy repairs. Frames with replaceable arms are fantastic because when you slam into a gate, you're only swapping out one cheap arm instead of a whole expensive main plate. It gets you back in the air way faster.

My Take: For anyone just starting out, a frame with replaceable 5mm arms is the sweet spot. It gives you the best mix of crash resilience and affordable, headache-free repairs while you’re still getting the hang of things.

Can I Use a Freestyle Frame for Racing?

Absolutely. In fact, many pilots start out racing with a freestyle frame and do just fine. The classic "True X" geometry common in freestyle gives you a balanced, predictable feel that translates surprisingly well to the race course.

The main tradeoff is that a purpose-built racing drone frame is engineered to be lighter and often uses more aggressive, speed-focused geometries. You’ll see designs like the "Stretched X" or "Vertical Arm" that are built from the ground up to give a competitive edge in stability and aerodynamics that you just don't get with most freestyle rigs.

How Much Does a Good Racing Drone Frame Cost?

You should expect to spend somewhere between $40 and $90 for a solid, high-quality carbon fiber racing frame. You can definitely find options under $40, but you might be making a compromise on the quality of the carbon or the overall finish.

On the high end, premium frames from top-tier brands can push past $100. For that extra money, you're typically getting superior T700 carbon, precision engineering, better hardware, and sometimes even lifetime warranties—a worthwhile investment for serious racers chasing peak performance.

What’s the Difference Between a 30x30 and a 20x20 Frame?

That number tells you the mounting pattern for your electronics stack—specifically, your flight controller (FC) and Electronic Speed Controller (ESC).

• 30x30mm: This is the original, larger standard. It's built for bigger components that are often more powerful and packed with more features.

• 20x20mm: This is the smaller, more compact "micro" standard. It’s designed for lighter builds where every gram counts.

Your frame has to have the right mounting holes for the electronics you plan to use. It's one of the very first things you need to check for compatibility before you hit that "buy" button.

---

Ready to find the perfect frame and parts for your next build? At JAB Drone, we've got the expert reviews and deep-dive guides to help you build with confidence. Check out our resources and join a community of pilots who are just as passionate as you are.
