A Guide to Drone Thermal Imaging Camera Technology

Think of a drone thermal imaging camera as a device that sees the world in temperatures instead of colors. It’s designed to detect the invisible infrared radiation—that is, the heat—that every object gives off, creating an image based entirely on temperature differences. This gives operators a superpower: the ability to see heat signatures and spot problems completely invisible to the naked eye.

How a Drone Thermal Imaging Camera Sees Heat

It helps to imagine if your eyes could perceive heat instead of light. A hot mug of coffee would practically glow, while an ice cube would look like a dark void. That’s exactly how a thermal camera works. It isn’t looking for reflected light from the sun or a lamp; it’s capturing the thermal energy that objects radiate on their own.

Anything with a temperature above absolute zero is constantly emitting this infrared energy. The warmer it is, the more radiation it sends out. This technology taps into a part of the electromagnetic spectrum our eyes can't see, which is why it works perfectly in total darkness or through smoke and fog.

The Microbolometer and the Thermogram

At the core of every thermal camera is a tiny but powerful sensor called a microbolometer. Think of it as a grid made up of thousands of individual pixels, each one sensitive enough to detect tiny fluctuations in infrared energy.

When heat from an object hits one of these pixels, the pixel warms up and its electrical resistance changes. The camera’s internal processor measures that change and assigns a specific color or shade of gray to that pixel based on its temperature. This happens for every single pixel on the sensor, thousands of times per second.

The final image is a detailed heat map known as a thermogram. On this map, different colors correspond to different temperatures, painting a clear picture of the thermal landscape. This allows an operator to instantly see things like:

• Hot Spots: An overheating component on a power line or a failing solar panel.

• Cold Spots: Signs of moisture trapped inside a roof or a leaky window seal.

• Heat Signatures: The distinct body heat of a lost hiker standing out against the cool forest floor at night.

A thermal camera essentially translates the silent language of heat into a visual story we can understand. It makes the invisible patterns of energy all around us visible and, more importantly, measurable.

Visible Light vs. Thermal Imaging

To really appreciate what a drone thermal camera brings to the table, it helps to put it side-by-side with the standard visible light cameras we use every day. Their fundamental differences are what make thermal imaging so powerful for professional applications.

Here's a quick breakdown of how they compare.

Visible Light Camera vs Thermal Imaging Camera

Feature	Visible Light Camera	Thermal Imaging Camera
Energy Source	Detects reflected visible light from the sun or artificial sources.	Detects emitted infrared radiation (heat) from objects themselves.
Functionality	Requires ambient light to create an image; ineffective in total darkness.	Functions perfectly in absolute darkness, smoke, or fog.
Output	Creates a color or black-and-white photograph based on light.	Creates a thermogram, a visual map of temperature differences.
Primary Use	Capturing scenes as the human eye sees them for documentation or art.	Identifying thermal anomalies for inspection, surveillance, and rescue.

As you can see, they don't compete—they complement each other by revealing two entirely different sides of the same story.

This unique capability is fueling some serious market growth. Drone-based systems are a huge part of the wider thermal camera market, which was valued at around $5.6 billion in 2025. That number is projected to nearly double to $10.7 billion by 2032, driven by massive demand in industrial maintenance, public safety, and security. You can learn more about the thermal camera market growth and what's behind it.

With this foundational understanding of how these cameras "see" heat, we can now dive into their game-changing real-world applications.

The Anatomy of a Thermal Drone System

A successful thermal mission isn’t just about having a powerful camera. It’s about the entire system—a seamless integration of hardware and software working in concert to capture and deliver actionable thermal data. From the specialized sensor that detects faint heat signatures to the software that translates it all into valuable insights, understanding this anatomy is the key to unlocking the technology's true potential.

A drone thermal imaging camera isn't a single piece of equipment. Think of it as a sophisticated package of several critical parts. Each plays its own distinct role, and if one part is weak, it can compromise the whole operation. This synergy is what turns a regular drone into a powerful tool for inspection and surveillance.

The Heart of the System: The Thermal Sensor

At the absolute core of the camera is the thermal sensor, which is usually an uncooled microbolometer. This little component is the true heart of the system. It acts like the retina of an eye, but instead of seeing visible light, it sees heat. It’s made up of a grid containing thousands of tiny, heat-sensitive pixels that react to incoming infrared radiation.

One of the most important specs you'll see is the sensor's resolution, like 640x512 pixels. A higher resolution simply means more pixels on the grid. More pixels give you a sharper, more detailed thermal image, allowing you to spot smaller heat anomalies from a safer distance.

The Specialized Lens

Here's a crucial detail: you can't use a standard glass lens for thermal imaging. Why? Because glass actually blocks long-wave infrared energy. Instead, thermal cameras rely on lenses made from specialized materials like Germanium, which is transparent to the infrared spectrum. A Germanium lens is to a thermal camera what a clear glass lens is to your everyday camera—it’s essential for focusing the energy.

These lenses are precision-engineered to focus that invisible heat energy directly onto the microbolometer, ensuring the sensor gets a clean and accurate thermal signature from whatever you're looking at.

The combination of a high-resolution microbolometer and a Germanium lens is the fundamental pairing that makes seeing heat possible. One without the other would render the entire system ineffective.

The Drone Platform and Gimbal

Of course, the camera payload needs a stable and reliable drone to carry it. These setups generally fall into two main categories:

• Integrated Systems: These are your ready-to-fly solutions where the thermal camera comes built directly into the drone, like the DJI Mavic 3 Thermal. They’re often more compact, easier to use, and designed for quick deployment right out of the box.

• Modular Systems: This approach involves attaching a separate thermal camera payload to a larger, more versatile drone. It offers a lot more flexibility to swap out payloads, but it usually requires more setup and a bit more expertise to get running.

Here’s a great example of an integrated system, the DJI Mavic 3 Thermal, which packs both thermal and visual sensors into one compact unit.

This screenshot shows how modern systems give you a split-screen view, letting you compare the thermal and visible light feeds side-by-side in real-time.

Just as important is the gimbal the camera is mounted on. This motorized stabilization mechanism is constantly working to counteract the drone's movements, vibrations, and any interference from the wind. It’s what keeps your thermal imagery buttery smooth and stable. Without a quality gimbal, the footage would be shaky and pretty much useless for any serious analysis. If you want to go deeper into the different types of payloads, check out our guide on understanding drone sensors and camera capabilities.

Finally, specialized software is what ties everything together. Flight control apps let pilots plan automated missions and view live thermal feeds, while post-processing software is used to analyze the collected data, create detailed reports, and pinpoint critical issues.

Decoding Thermal Camera Performance Metrics

Choosing the right drone thermal camera can feel like wading through a sea of technical jargon. Words like "NETD," "radiometric," and "resolution" are plastered all over spec sheets, but what do they actually mean for your mission? Getting a handle on these key performance metrics is what separates a good investment from an expensive mistake, ensuring you buy a tool that truly gets the job done.

Think of it this way: you wouldn't buy a truck without knowing its towing capacity. In the same way, you can’t select a thermal camera without understanding its ability to detect, measure, and display heat. This knowledge is your ticket to seeing past the marketing hype and making a decision based on solid, real-world capability.

Sensor Resolution: The Key to Detail

The first metric you'll almost always see is sensor resolution, shown as numbers like 640x512 or 320x256. This is simply the total count of individual heat-detecting pixels on the camera's sensor. More pixels mean a higher resolution, which translates directly into a sharper, more detailed thermal image.

Imagine trying to read a street sign from a block away. Higher resolution is like having better eyesight—you can make out the letters clearly from much farther away. For a drone operator, this means you can fly higher and maintain a safer distance from a target while still capturing the fine thermal details you need. A 640x512 camera, for instance, can spot a small, overheating electrical component on a utility pole from a safe standoff distance, something a lower-res sensor would completely miss.

Thermal Sensitivity: Seeing a Whisper of Heat

Next up is Thermal Sensitivity, also known as Noise Equivalent Temperature Difference (NETD). Measured in millikelvins (mK), this spec tells you the smallest temperature difference the camera can possibly detect. Here, a lower number is better because it means the camera is more sensitive.

Think of NETD as the camera's hearing. A camera with a low NETD (like <30 mK) can "hear" a faint whisper in a quiet room. It can pick up on incredibly subtle temperature variations, like the faint cold signature of moisture hiding inside a commercial roof. In contrast, a camera with a higher NETD would be "hard of hearing" and might miss that critical detail entirely, leading to an incomplete inspection.

A camera's NETD rating is a direct measure of its ability to distinguish between minute temperature differences. For applications like moisture detection or search and rescue, where subtle heat signatures are critical, a lower NETD is non-negotiable.

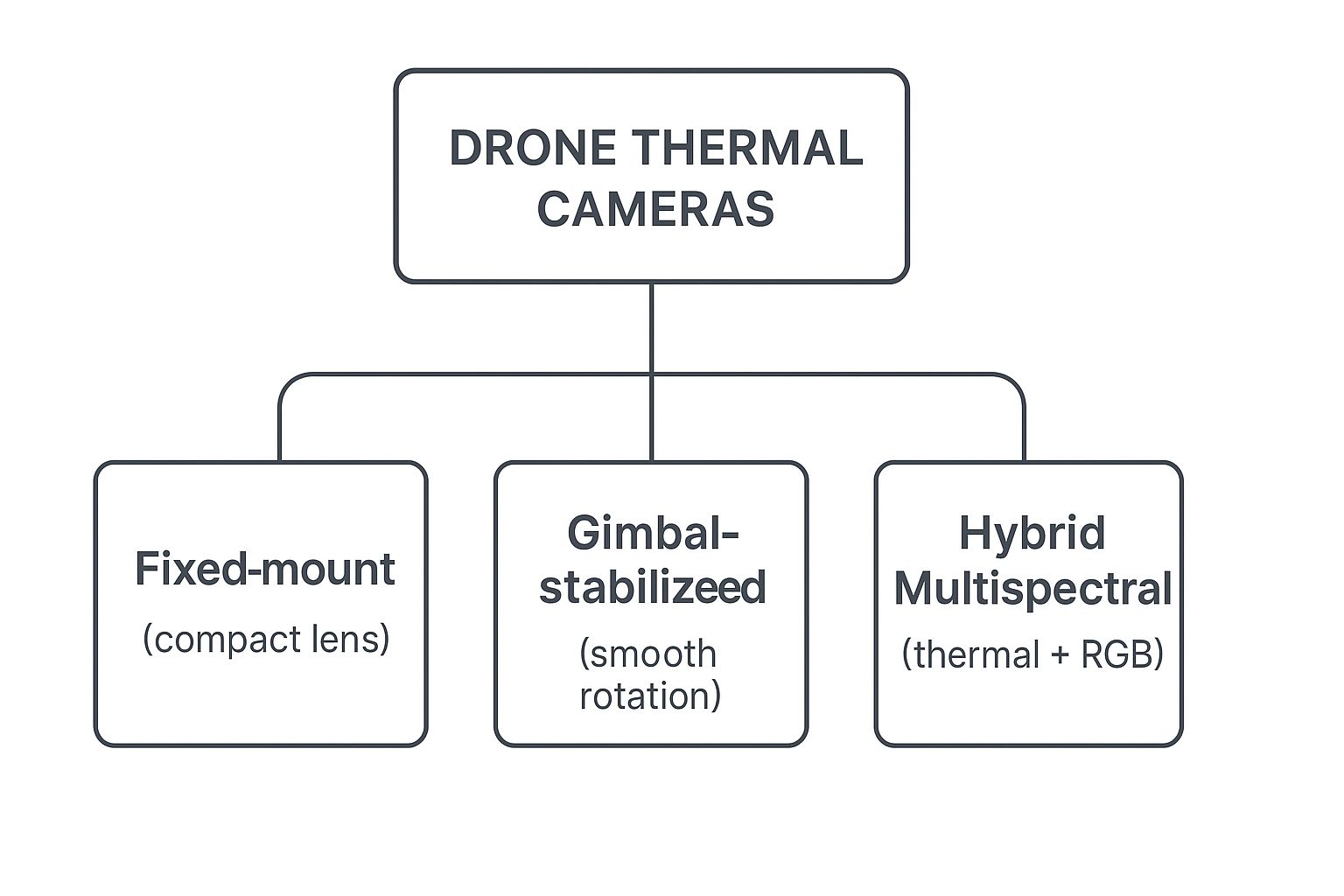

This hierarchy diagram shows the main types of drone thermal cameras available on the market today.

As you can see, systems range from simple fixed-mount options to advanced hybrid payloads that combine multiple sensors for maximum data collection.

Frame Rate and Radiometry

Two other crucial specs you need to keep an eye on are frame rate and radiometric capability.

• Frame Rate (Hz): Measured in Hertz (Hz), this is how many times per second the thermal image refreshes. A higher frame rate, like 30 Hz or 60 Hz, gives you much smoother video. This is absolutely essential if you're tracking fast-moving objects or flying the drone at higher speeds.

• Radiometric Data: This is a total game-changer for professional analysis. A radiometric thermal camera doesn't just paint a picture of heat; it embeds precise temperature data into every single pixel. This allows you to go back later, use specialized software, click on any point in the image, and get an exact temperature reading. That’s something non-radiometric cameras simply can't do.

Understanding how these specs translate into real-world performance is key to choosing the right tool. The table below breaks down how each metric impacts different drone applications.

Thermal Camera Specification Impact on Applications

Specification	What It Measures	High-Impact Application	Why It Matters
Resolution	The number of thermal pixels on the sensor (e.g., 640x512).	Utility Inspection	Higher resolution allows operators to spot small faults like failing insulators from a safe distance, improving both safety and efficiency.
Thermal Sensitivity (NETD)	The smallest temperature difference the camera can detect (e.g., <30 mK).	Roof Moisture Detection	A low NETD is critical for detecting the very subtle temperature differences caused by trapped moisture under a roof's surface.
Frame Rate	How many times per second the image updates (e.g., 30 Hz).	Search and Rescue	A higher frame rate provides smooth video, making it easier to track a moving person or animal from the air without motion blur.
Radiometric Capability	The ability to embed temperature data in each pixel.	Solar Panel Inspection	With radiometric data, you can pinpoint the exact temperature of a malfunctioning cell to quantify energy loss and prioritize repairs.

As you can see, the "best" camera really depends on the job at hand. A public safety team will prioritize different specs than a crew inspecting solar farms.

The demand for these advanced features is a major reason the drone camera market is exploding. This market, which includes thermal imaging, is projected to climb from $14.09 billion in 2025 to over $110 billion by 2033. That's a staggering CAGR of about 29.34%, fueled by the growing need for high-quality data and AI-powered analysis. You can read the full research on the drone camera market to see the trends pushing this growth.

How Industries Are Using Thermal Drones

The real magic of a drone thermal imaging camera isn't just the tech itself, but what people are doing with it. Across dozens of industries, these aerial systems are no longer just novel gadgets; they're becoming essential tools for solving tough problems and creating real value. They offer a unique eye in the sky that saves time, cuts costs, and, most importantly, keeps people safe.

From quiet farm fields to bustling construction sites, thermal drones are completely changing how things get done. The market growth tells the story: valued at around $500 million USD in 2025, it's expected to explode to nearly $1.8 billion USD by 2033, growing at a steady clip of about 15% each year. This boom is all thanks to key sectors that have really figured out how to put this technology to work.

Public Safety and Emergency Response

When it comes to public safety, every second is critical, and thermal drones have quickly become a first responder's best friend. Picture a search and rescue team trying to find a lost hiker in a thick forest after dark. With a regular camera, it's a near-impossible task. A thermal drone changes the game completely.

An operator can scan huge, rugged areas in just a few minutes, moving way faster than any team on the ground. The drone's camera isn't looking for a person; it's looking for their heat signature. A human body, which is almost always warmer than the cool ground at night, shows up as a bright, clear shape, letting rescuers pinpoint the person's exact spot, even through trees or in total darkness. This one capability has saved countless lives.

Infrastructure and Energy Inspections

Utility companies have the massive job of keeping thousands of miles of power lines, pipelines, and substations running. One bad component can cause a massive outage, costing millions. Traditionally, inspections meant sending crews up in helicopters or bucket trucks—a slow and dangerous process.

A drone thermal imaging camera provides a much safer and smarter way. Flying along a high-voltage line, it can instantly spot "hot spots," which are electrical parts overheating from wear or resistance. These problems are invisible to the naked eye but glow like a beacon on a thermal feed, warning of a failure before it happens.

This proactive mindset applies to all sorts of sectors:

• Solar Farms: Drones can quickly scan thousands of panels to find defective cells, which appear hotter than their neighbors.

• Building Diagnostics: Inspectors use them to spot energy leaks, bad insulation, and hidden moisture damage in buildings.

• Oil and Gas: Thermal drones are great for finding methane leaks from pipelines and tanks, which show up as distinct plumes on the thermal image.

In infrastructure, thermal drones shift the paradigm from reactive repairs to predictive maintenance. By seeing heat, operators can see the future, preventing failures before they happen and ensuring operational continuity.

Beyond these common uses, new applications are always popping up, like [utilizing drones for construction](https://usewhale.io/templates/operations-templates/utilizing-drones-for-construction/) to get a detailed look at a building's structural integrity and energy efficiency.

Precision Agriculture and Environmental Monitoring

Modern farming is a science, and thermal data is one of its most powerful instruments. Farmers now use thermal drones to get a big-picture view of crop health across massive fields. A thermal camera can pick up on tiny temperature differences in plants, which can point to:

• Water Stress: Thirsty plants get hotter. By spotting these areas, farmers can target their irrigation, saving water and boosting their harvest.

• Disease or Pests: Stressed or infected plants often show thermal anomalies long before you can see any yellowing leaves.

• Soil Issues: You can even see differences in soil moisture and makeup through thermal variations on the ground.

This data lets farmers step in with surgical precision, applying resources only where they're actually needed. If you want to go deeper on this, [check out our guide on top drone applications in agriculture for better farming](https://www.jabdrone.com/post/top-drone-applications-in-agriculture-for-better-farming).

In the same way, environmental scientists use thermal drones to keep tabs on wildlife without bothering them. They can count animals at night, follow migration patterns, and even check on the health of marine mammals by looking at their heat signatures from a safe distance. It’s a non-invasive way to gather priceless data for conservation.

Choosing the Right Thermal Drone for Your Mission

Picking the right drone thermal imaging camera is a big deal. It's a decision that will make or break your success in the field. The very first thing you need to do—before you even look at specs or prices—is get crystal clear on your primary mission.

What are you actually trying to accomplish? Are you searching for a missing person in a dense forest, where spotting a single heat signature is everything? Or are you inspecting a massive solar farm, hunting for tiny, overheating cells among thousands of panels? Each job has its own unique demands, and those demands will guide every other choice you make.

Integrated vs. Modular Systems

Once you’ve nailed down your mission, you’ll face your first major hardware choice: an integrated system or a modular one. Each has its own pros and cons, and the right answer depends entirely on your needs.

• Integrated Systems: Think of these as the all-in-one, ready-to-fly solutions. The thermal camera is built right into the drone from the factory. They’re usually compact, easy to use, and perfect when you need to get in the air fast. The DJI Mavic 3 Thermal is a classic example of this—powerful, portable, and straightforward.

• Modular Payloads: This approach is more like building a custom toolkit. You start with a larger, more versatile drone and then attach a separate, high-performance thermal camera. This gives you incredible flexibility to swap out payloads for different jobs or upgrade just one component at a time. The trade-off? They typically cost more and require a bit more technical know-how to set up and operate.

Ultimately, your choice here is a balance between convenience and customization. If you need a reliable tool that just works out of the box, an integrated system is probably your best bet. But for highly specialized work that demands the absolute best performance, a modular setup is often the only way to go.

Budgeting for Your Thermal Drone

Let’s talk money. Cost is always a factor, and thermal drone prices can range from a few thousand dollars to the price of a new car. To make sense of it all, it helps to break the market down into three tiers.

Drone Tier	Price Range (Approx.)	Best For
Entry-Level	$3,000 - $7,000	Basic inspections, getting started, and small-scale operations.
Professional	$7,000 - $15,000	Public safety, detailed building inspections, and most commercial work.
Enterprise-Grade	$15,000+	Large-scale utility inspections, advanced surveying, and specialized missions.

These prices don't just reflect the quality of the thermal camera. They also factor in things like the drone's flight time, its ruggedness, and other advanced features. It can be tempting to go for the cheapest option, but you'll get a much better return on your investment by matching your budget to your mission's actual requirements.

Software, Training, and Support

Don’t get so focused on the hardware that you forget about the ecosystem around it. The best camera in the world is pretty useless if you don't have powerful software to make sense of the data it collects. Look for a system that comes with a robust software suite to help you plan missions and generate reports easily.

Training and support are just as crucial. You need to know how to operate your equipment safely and effectively to get real value from it. And remember, before you fly for any commercial purpose, you'll need the proper certification. You can learn everything you need to know by checking out [how to get a commercial drone license in our proven success guide](https://www.jabdrone.com/post/how-to-get-a-commercial-drone-license-proven-success-guide).

When you make your final choice, make sure you're looking at the complete package—not just the drone itself.

Mastering Flight Operations and Regulations

Getting your hands on a high-tech drone thermal imaging camera is just the start. The real magic happens when you know how to operate it skillfully, safely, and within the rules. A successful thermal mission is less about the gadget and more about the pilot’s prep work and feel for what’s happening in the environment.

The world around you has a huge say in the quality of your thermal data. Things like solar radiation, the wind, and even the ambient temperature can throw your readings way off. For example, trying to inspect a roof on a hot, sunny afternoon is a classic rookie mistake. The sun blasts the roof with so much heat—a phenomenon called "thermal loading"—that it completely hides the subtle temperature differences you’re actually looking for.

Best Practices for Data Accuracy

If you want readings you can trust, it all comes down to timing and a solid flight plan. Your goal is to fly when the temperature gap between your target and everything around it is as wide as possible.

• Fly at the Right Time: For jobs like building inspections, the sweet spot is usually right after the sun goes down or just before it comes up. This minimizes the sun's influence, making thermal anomalies like heat leaks or hidden moisture pop on the screen.

• Consider Your Altitude: Fly too high, and you lose all the fine detail in your thermal image. Fly too low, and you might miss the bigger picture. Finding the perfect altitude is a balancing act that depends on your camera’s resolution and how small of a target you need to spot.

• Choose the Right Palette: The color palette you use—like White Hot, Black Hot, or Rainbow—can make or break your ability to spot an issue. There’s no single "best" one. Seasoned pilots are constantly switching between them during a flight to pull out different thermal patterns.

Successful thermal operations are a blend of art and science. It’s not just about flying a drone. It’s about reading a dynamic thermal environment and making adjustments on the fly to capture data that tells the real story.

Navigating Rules and Regulations

Beyond just being a good pilot, staying on the right side of the law is non-negotiable for any commercial drone work. In the United States, that journey begins with getting your Part 107 Remote Pilot Certificate from the FAA. This is your license to fly, proving you understand airspace rules, weather, and safe flight operations.

Knowing where you can and can’t fly is absolutely critical. Tools like the FAA's B4UFLY app are your best friend here, helping you check for airspace restrictions around airports, military bases, and national parks. You also have to keep an eye out for Temporary Flight Restrictions (TFRs) that can pop up anywhere. Safety is everything, and a deep knowledge of your drone's safety features is a must. You can learn more about [drone collision avoidance systems for safer flights](https://www.jabdrone.com/post/drone-collision-avoidance-top-systems-for-safer-flights) to make sure you're prepared for anything.

Finally, there’s the huge issue of privacy. A thermal camera can see things the naked eye can’t, which means you have a big responsibility to respect people's privacy. Never fly over private property without getting permission first. Acting with professionalism and being transparent about what you’re doing builds trust and helps ensure a future for all of us in the commercial drone industry.

Common Questions Answered

Even after digging into the details, you’re bound to have a few lingering questions. It happens any time you’re exploring new tech. Let’s tackle some of the most common ones that come up when people are getting started with drone thermal imaging.

Can a Drone Thermal Imaging Camera See Through Walls?

This is probably the number one question people ask, and the short answer is no. A thermal camera can't see through solid objects like walls.

Think of it this way: walls are usually pretty well-insulated. That thickness and insulation effectively block the infrared energy (the heat) from whatever is on the other side. Your thermal camera will only pick up the surface temperature of the wall itself. This is still incredibly useful for finding things like missing insulation or hidden moisture problems, but it won’t show you what’s in the next room.

What Is the Difference Between Thermal and Night Vision?

It’s easy to mix these two up, but they work in completely different ways. Making the right choice depends entirely on the mission.

Night vision technology is essentially an amplifier for light. It takes tiny amounts of ambient light—from the moon, stars, or distant city lights—and makes it bright enough for our eyes to see. The key takeaway is that it needs some light to work. In total darkness, it's completely blind.

A drone thermal imaging camera, however, couldn’t care less about visible light. It detects heat energy, or infrared radiation, which all objects emit. This means it works perfectly in complete darkness, can cut through smoke and heavy fog, and is far more powerful for professional jobs like search and rescue.

How Far Can a Thermal Drone See?

The effective range of a thermal drone really comes down to two things: the camera's resolution and the size of what you’re looking for.

A high-resolution camera, like one with a 640x512 sensor, can spot the heat signature of a person from hundreds of feet away, sometimes even further if the conditions are perfect. A lower-resolution camera will have a much shorter range. Of course, for detailed inspection work where you need precise temperature readings, you'll be flying much closer to your target anyway.

It’s all about detection versus identification. A drone might detect a hot spot from a long way off, but you'll need to get much closer to positively identify what that hot spot is. Keeping this in mind is critical when planning any thermal mission.

---
